Grid Tie Inverter for Wind Generator

The grid tie inverter feeds a power grid by using the power generated by a wind generator. The wind turbine converters the mechanical energy from wind into the 3-phase AC voltage. The voltage and frequency of the AC generated by the wind are variable and depend on the wind speed. To be exported to the utility grid the power need to be converted to the frequency and voltage level of the grid. The grid tie inverter does this conversion

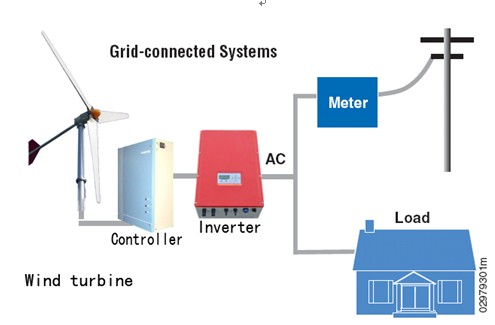

When used in parallel with the power grid, the alternating current generated by the inverter is directly fed to the domestic distribution circuit, which in turn is also connected to the public power distribution grid. The wind generator system can thus directly feed all the connected user electrical loads, such as lighting, computer and other household appliances, etc.

When the wind turbine is not generating sufficient energy, the power required to ensure proper operation of connected user loads is taken from the public power grid. While if the energy produced by the wind turbine exceeds load needs, it is directly fed to the grid, thus becoming available to other users’ loads

Single Phase Grid Tie Inverter Specification

Model	BNWG-1KD	BNWG-2KD	BNWG-3KD	BNWG-5KD
Input data
Recommended generator power	1000W	2000W	3000w	5000W
DC voltage range	100~580VDC	100~580VDC	150~580VDC	200~580VDC
Max input current	10A	15A	20A	25A
Output data
Max. AC power	1200W	2400W	3600W	6000W
Nominal AC output	1000W	2000W	3000W	5000W
Nominal AC voltage	280V
efficiency	94%(92 EURO)
Power factor	≥0.99
Grid voltage, operating range	180~265VAC
Grid frequency, operating range	50Hz / 60Hz ±2 Hz
Insulation level	1,500Vac, 1 minute
Communication connecting	232 485
Extended temperature range	-25~+60℃
Protection	Low voltage、over voltage、wrong polarity ，over current、short circuit、overheat
weight	20 Kg	40kg	45 kg	60 kg
Size (height x width x depth):mm	300*150*500	350*200*500	350*200*500	400*250*500

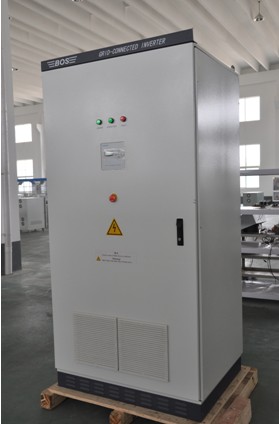

Three Phase Grid Tie Inverter Specification

Model	BNWG-10KS	BNWG-30KS		BNWG-50KS	BNWG-100KS
Input data
Wind generator power	10KW	30KW		50KW	100KW
DC voltage range	200~780VDC	200~780VDC		400~780VDC	400~780VDC
Max input current	50A	100A		150A	250A
Output data
Max. AC power	12KW	36KW		60KW	120KW
Nominal AC output	10KW	30KW		50KW	100KW
Nominal AC voltage	380V
Grid voltage	320~440V AC
Grid frequency	50Hz / 60Hz ±2 Hz
efficiency	94%(92 EURO)
Power factor	≥0.99
Idle consumption	<10W
Insulation level	1,500Vac, 1 minute
Communication	232 485
Temperature range	-25~+60℃
Protection	Low volt, over volt, wrong polarity, over current, short circuit,overheat
weight	150 Kg		400kg	600 kg	800 kg
Size :mm	600*500*1000		800*600*1800	800*600*2260	800*600*2260
